General

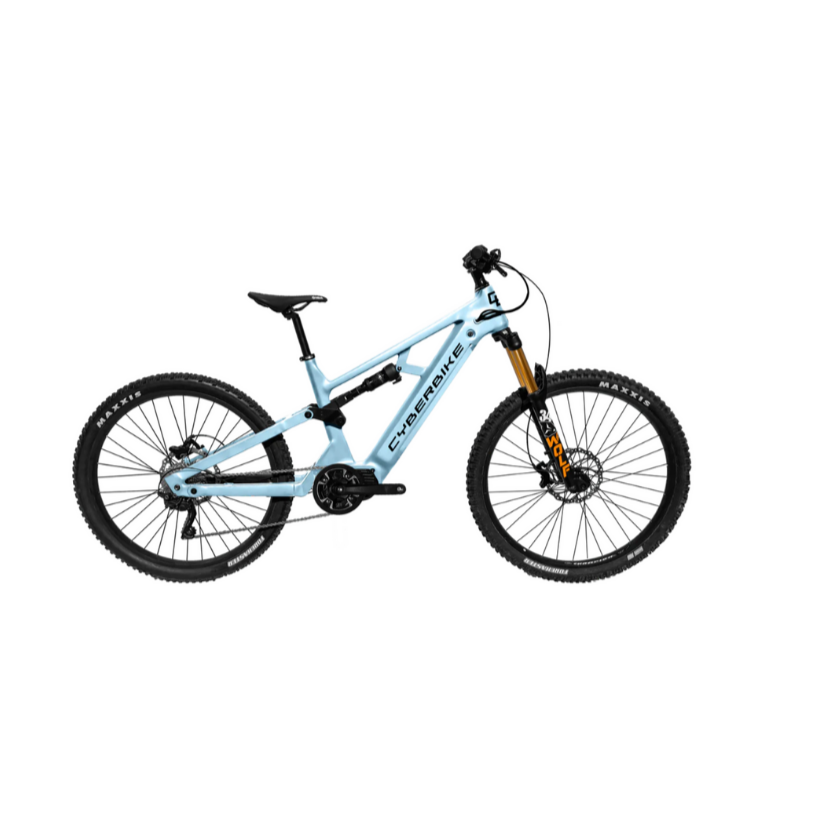

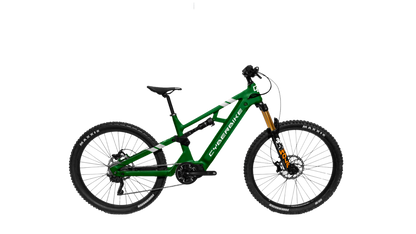

• Product: Cyberbike Cyclone RX
• Model Year: 2025
• Riding Type: Trail / All-Mountain
• Rider: Unisex
• Sizes: Small, Medium, Large
• Colors: Solar Flare, Racer Red, Rumble Pink, Turquoise Blast Two-Tone, Stealth Black, Sunset Orange Two-Tone, Arctic Gray, Daytona Blue
• Weight:
– 57.5 lb (Small)
– 59 lb (Medium/Large)
(including battery, without pedals and kickstand, tubeless setup)
• Weight Limit: Maximum total weight (bike, rider, cargo): 375 lb
• Warranty: 3 years motor, 1 year bike components and battery (excludes consumables)
Frame and Suspension
• Frame Material: 6061 Aircraft-grade alloy, cast/extruded, welded
• Rear Travel: 140mm
• Rear Shock: DNM AO-38 trunnion mount, 190mm x 50mm, 10 mm hard-anodized AL-7075 damper shaft and a hard-anodized AL-6061 shock body; air preload, compression, and rebound damping
• Front Fork: Wolf Sport Air Forks, 34mm hard-coated and anodized stanchions, air preload adjustable, adjustable compression damping
• Fork Travel:
– 100mm (Small)
– 120mm (Medium)
– 140mm (Large)
• Head Tube Diameter: Tapered, 1.125" top, 1.5" bottom
• Headset: Sealed integrated cartridge bearings
Drivetrain
• Motor: Star Union CM5001 with iPx6 waterproofing; 750W peak
• Battery: Cyberbike 624Wh, 48V, 13Ah
• Display: Frame mount LCD
• Bluetooth: Yes
• Shifter: Trigger Shift
• Rear Derailleur: Shimano Acera RD-M360 8-Speed
• Cranks: 165mm
• Chainrings: Steel, narrow wide, 40T
• Cassette: 8-speed, 11-34 tooth
• Chain Guide: None
Brakes
• Brakes: Cyberbike 2-piston hydraulic with 180mm rotors (front and rear)
• Brake Levers: Cyberbike Sport
Wheels and Tires
• Wheel Size:
– Small: 27.5" Front & Rear
– Medium/Large: 27.5" Rear; 29" Front
• Rims: Champion, 38mm width, alloy, tubeless-ready (does not include tape, valve, sealant)
• Hubs: Eagle Blue Anodized Alloy with Boost Axles
• Tires: Maxxis Forekaster
– Small: Front: 27.5" x 2.35", Rear: 27.5" x 2.35"
– Medium/Large: Front: 29" x 2.35", Rear: 27.5" x 2.35"
• Max Tire Size:
– Small: 27.5" x 2.35" (Front & Rear)
– Medium/Large: 29" x 2.4" (Front), 27.5" x 2.35" (Rear)
Cockpit
• Handlebar: Promax Alloy, mild rise/sweep, Width: 740mm
• Stem: No rise
– 40mm (Small/Medium)
– 90mm (Large)
• Grips: Ultragrip lock-ons
• Saddle: Velo VL-6090
• Seatpost Diameter: 30.9mm
• Seatpost Clamp: Single bolt, 36.4mm
Additional Components
• Pedals: Steel, studded (included)
• Bottle Cage Mounts: One, inside down tube
• Lighting: Optional Integrated Cyberbike Single or Aurora Triple Beam (control pod and Bluetooth operated)
• Miscellaneous: Internal cable routing
