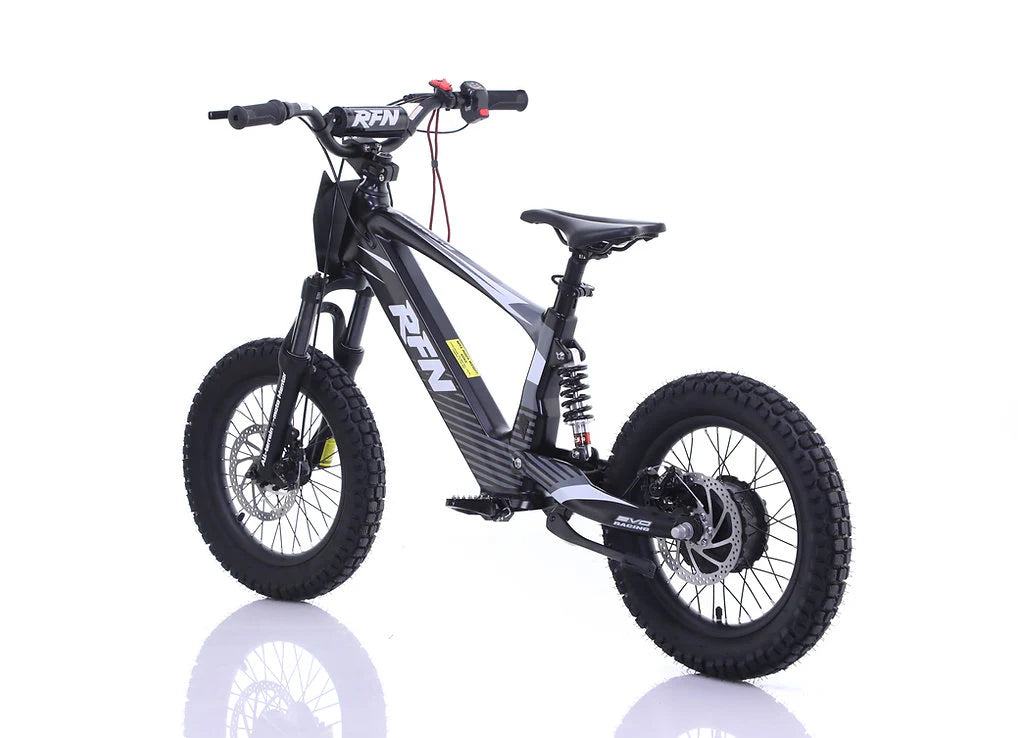

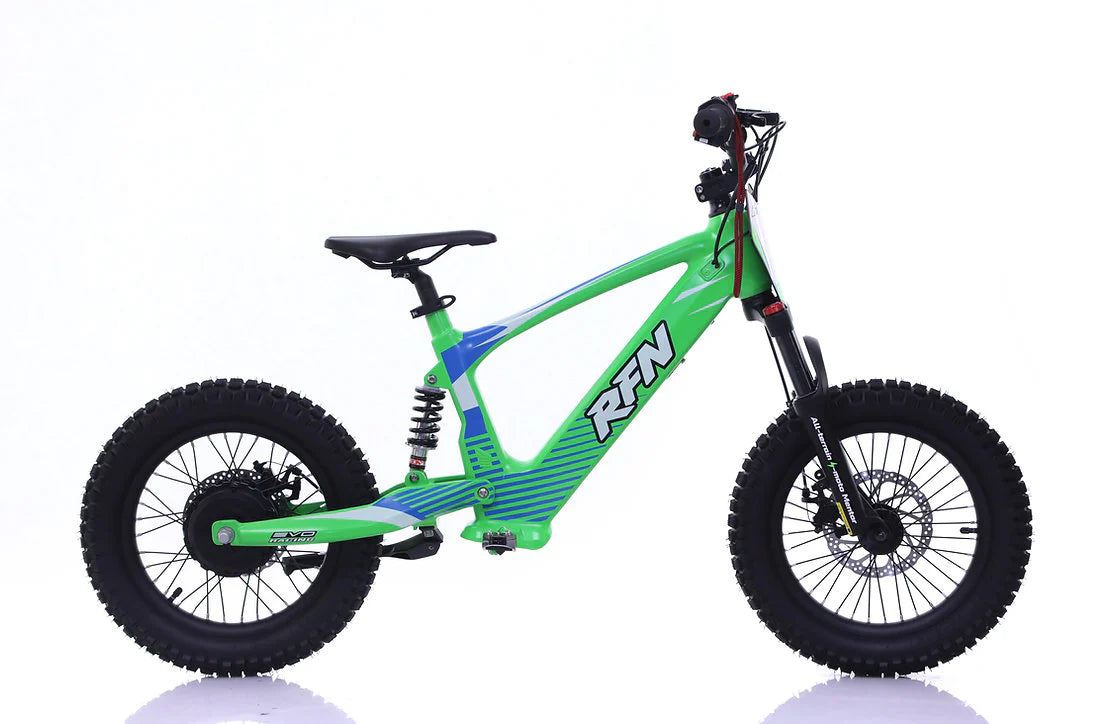

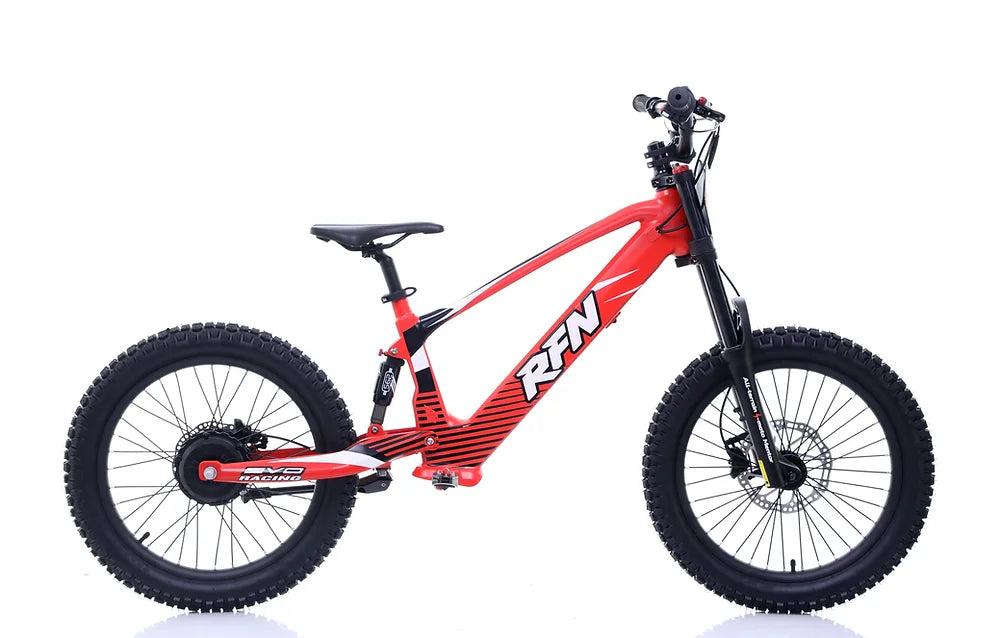

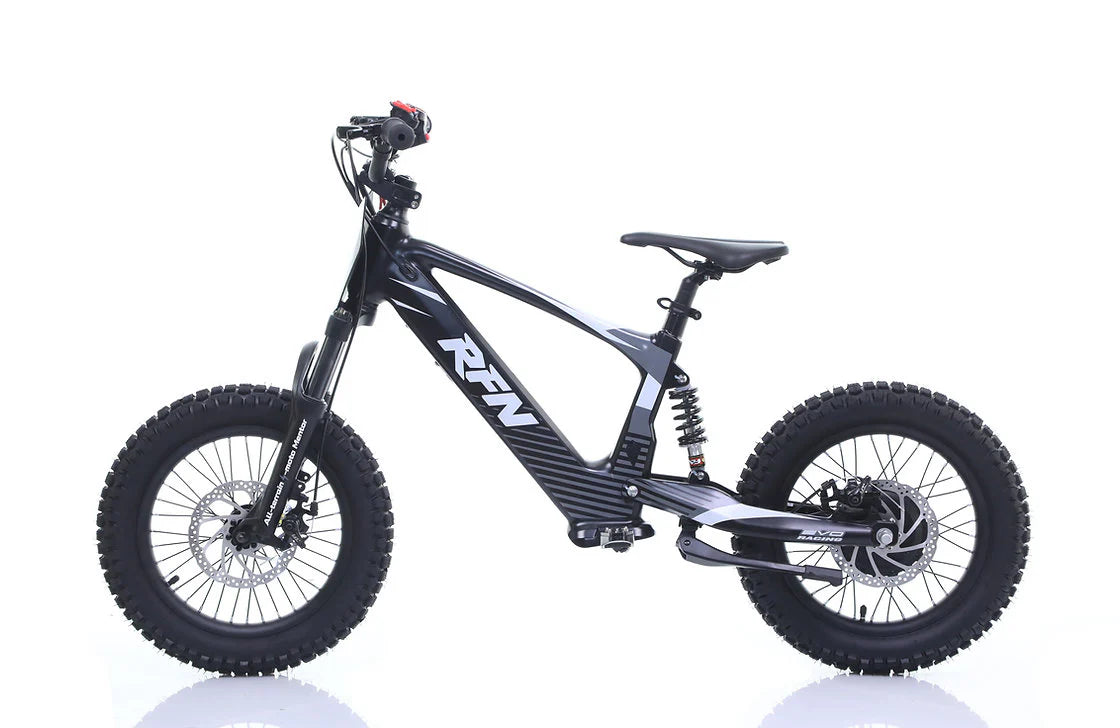

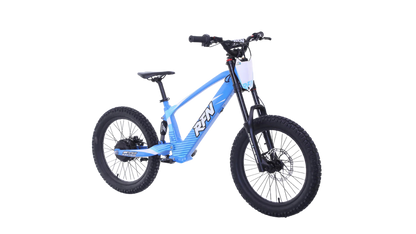

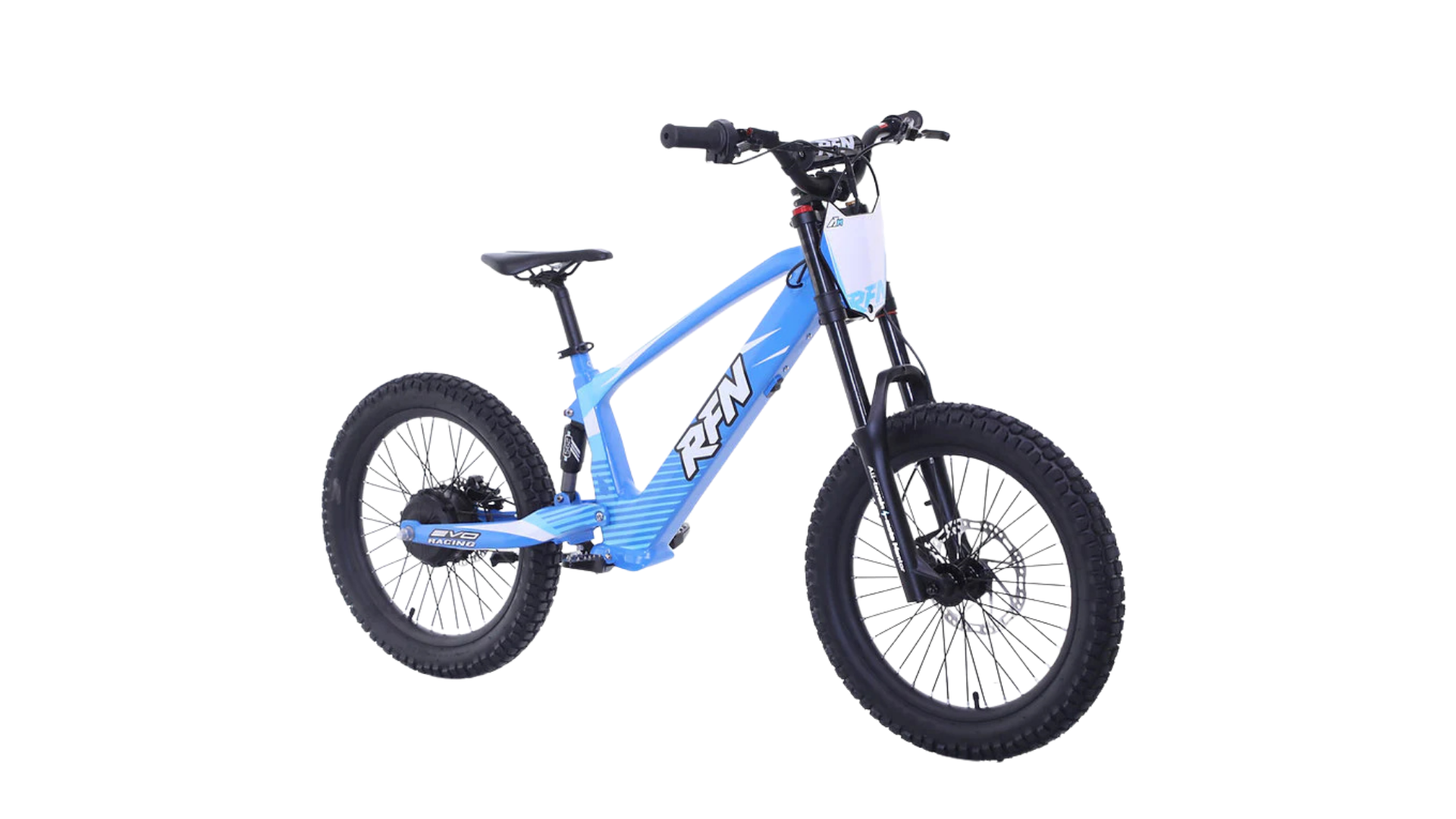

RFN Evo Racing 20 E-Moto

The RFN EVO 20 Electric Kids Bike is designed for young riders ready to tackle advanced off-road adventures with confidence and style. Powered by a high-performance electric motor, it delivers smooth acceleration and a thrilling riding experience. Its lightweight aluminum frame, adjustable suspension, and hydraulic disc brakes provide excellent control, comfort, and safety across various terrains. With a removable battery for extended playtime and quick recharging, the EVO 20 ensures endless fun and reliability for aspiring young riders.

SPEED & RANGE

• Range Up to 1hr 15mins Run Time (On Eco Mode)
• Top Speed 30km/h

BATTERY

• EVO 20 36V / 270Wh, 7.5AH Lithium
• Batteries are removable, swappable and can be charged in bike or separately.

RIDE MODES

• Mode 1 Eco mode: Lowest Speed Mode 15km/h + Maximum Run Time
• Mode 2 Low mode: Medium Speeds of 22km/h + Medium Run Time
• Mode 3 Sport mode: Max Speed 30km/h + Least Run Time

FEATURES

• Hill Ability Up to 20% Inclines
• Seat Adjustable Height
• Warranty 1 Year

BRAKES

• EVO 20 Hydraulic with 160mm Disc

CHARGING

• 2-3h with Fast Charging Functionality

CONTROLS

• Power On/Off with 3 Speed Modes and Safety Cut Off Lanyard Switch

CONTROLLER

• Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.

MOTOR

• Electric Motor Brushless Hub
• Power 750W

CONSTRUCTION

• Frame Aluminium
• Handlebars Aluminium
• Foot Pegs Aluminium

SUSPENSION

• Front Hydraulic Lock Out, Spring Adjustable 100mm Travel
• Rear Air/Oil Mixed Shock - Adjustable

WHEELS & TYRES

• Tyres 20x2.5" All Terrain Tyres

DIMENSIONS

• Seat Height 690 - 780mm
• Overall 1450mm
• Ground Clearance 240mm
• Wheel Base 1000mm

WEIGHTS

• N.W of Battery 2 kg

• N.W of Bike 20.58kg
• Max Loading 50 kg
